This Product/Service is offered by:

Shenzhen HDV Photoelectron Technology, Shenzhen, China
SEND ENQUIRY

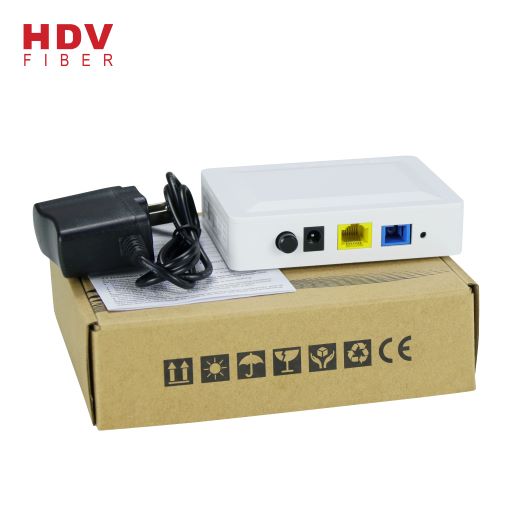

Wholesale price 1GE port Dual Mode EPON GPON GEPON Onu XPON huawei ftth

09 Mar 2022

1. Overview * HTR5033X is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access. * HTR5033X is based on mature and stable, cost-effective XPON technology. Itcan switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT. * HTR5033X adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X 2. Functional Feature * Support EPON/GPON mode and switch mode automatically * Support ONU auto-discovery/Link detection/remote upgrade of software * Support RoutePPPoE/IPoE/Static IP and Bridge mode * Support IPv4/IPv6 Dual mode * Support Firewall function and IGMP multicast feature * Support LAN IP and DHCP Server configuration * Support Port Forwarding and Loop-Detect * Support TR069 Remote Configuration and maintenance *Specialized design for system breakdown prevention to maintain stable system

Technical item Details PON Interface 1 GPON BOB (Class B+/Class C+) Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power:+0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Chip Spec RTL9601D ,CPU 300MHz,DDR2 32MB Flash SPI Nor Flash 16MB LAN Interface 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector LED 4 LED, For Status of PWR、LOS、PON、LINK/ACT Push-Button 2,For Function of Power on/off,Reset Operating Condition Temperature: 0℃~+50℃ Humidity: 10%~90%(non-condensing) Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%(non-condensing) Power Supply DC 12V/0.5A Power Consumption <3W Dimension 120mmx78mmx30mm(L×W×H) Net Weight 0.13Kg

Post Image #13232
