Shenzhen HDV Photoelectron Technology, Shenzhen, China

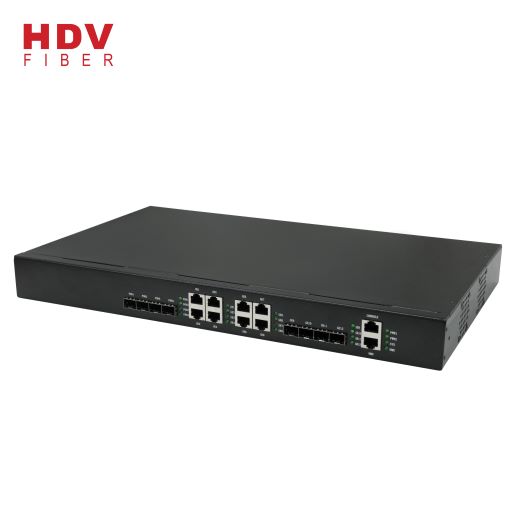

Factory direct price FTTH fiber bdcom 4 pon epon olt

09 Mar 2022

Short Description: EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction. The OLT provides 4 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4*GE sfp optical for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.

ITEM: 4/8 PON port, Service Port: 4/8 PON port 8*GE, 4"10G SFP optical Redundancy Design Dual Voltage Regulators Power Supply ‘AC: input100~240V * 2 47/63Hz Power Consumption =45W Dimensions (Width x Depth x Height) 440mm x44mmx260mm Weight (Full-Loaded) =4.5kg Environmental Requirements: Working temperature: ~10°C~55°C Storage temperature: -40°C~70°C Relative humidity: 10%~90%, non-condensing
