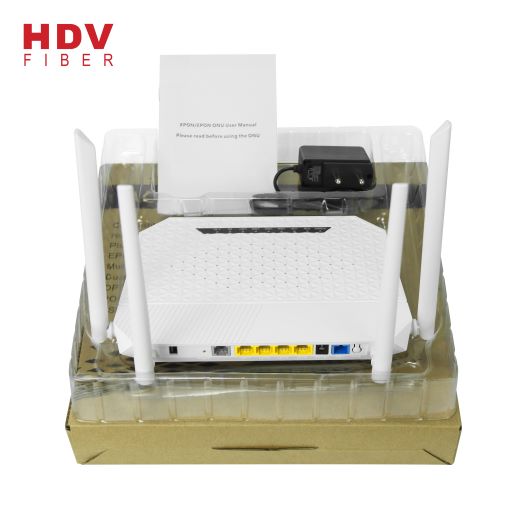

Dual Band 2.4G&5G FTTH 4GE+4WIFI+1POTS+1USB 5dBi 4 Antennas AC XPON GPON ONU For ZTE

1. Overview * HUR4001XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.The carrier-class FTTH application provides data and video service access . * HUR4001XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT. * HUR4001XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X 2. Functional Feature * Support EPON/GPON mode and switch mode automatically * Support Route mode for PPPoE/DHCP/Static IP and Bridge mode * Support IPv4 and IPv6 * Support 4G&5.8G WIFI and Multiple SSID * Support SIP Proctol for Voip Service * Support LAN IP and DHCP Server configuration * Support Port Mapping and Loop-Detect * Support Firewall function and ACL function * Support IGMP Snooping/Proxy multicast feature * Support TR069 remote configuration and maintenance * Specialized design for system breakdown prevention to maintain stable system

Technical item Details PON Interface 1 GPON BoB（Class B+/Class C+） Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power: +0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Design Scheme RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G)+Si32192 BOB(RTL8290B) Chip Spec CPU 950MHz,DDR2 128MB Flash SPI NAND Flash 128MB LAN Interface 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Wireless Compliant with IEEE802.11b/g/n,ac 2.4G Operating frequency:2.400-2.4835GHz 5.8G Operating frequency:5.150-5.825GHz 2.4G 2*2 MIMO, rate up to 300Mbps 5.8G 2*2 MIMO ,rate up to 867Mbps 4 external antennas 5dBi Support Multiple SSID POTS interface FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 USB Standard USB2.0 LED 9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G Push-Button 2 ,For Function of Reset and WPS Operating Condition Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） Power Supply DC 12V/1A Power Consumption ≤6W Dimension 248mm×158mm×192mm（L×W×H） Net Weight 0.3Kg Storing Condition Temperature: -30℃~+60℃
